PRODUCT CENTER

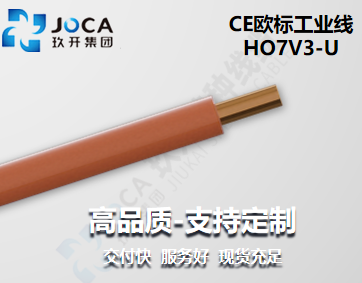

HO7V3-U
HO7V3-U实芯单芯线，易开皮，裁剪，装置方便，切合欧 盟协调尺度，用于电器、装置的配电盘与电源分配器接线板之间的内部周边接线，电子和电气设备开关柜之间接口，设计使用半露出和嵌入式导管可弯曲敷设与接地线，耐低温环境。切合认证:RoHSCE 电缆结构1. 导 体：绞合裸铜或者镀锡铜切合 IEC 60228,VDE 0295 5类尺度2. 绝 缘：PVC/TI4切合DINVDE 02813. 色彩鉴别：切合 HD 402尺度4. 利用尺度：HD21.3 S3、VDE-0281Part-3、CE Low Voltage Diretive 、73/23/EECand 93/68/EEC技术参数：1. 额定电压：450/750V2. 测试电压：2500V切合DIN VDE 0281第2部门HD21.2 3. 最幼弯曲半径 固定敷设：12D(电缆表径) 4. 温度领域 固定敷设：-40℃至+70℃

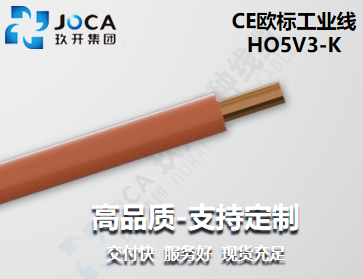

HO5V3-K
HO5V3-K柔性弯曲单芯线，切合欧盟协调尺度，用于电器、仪器、电气装置的内部的柔软衔接，仪器、 装置、配电盘、电源分配器(板)和电信设备之间衔接,也合用于�；は低�(接地线)与报警灯，低温环境。切合认证:RoHSCE 电缆结构1. 导 体：绞合裸铜或者镀锡铜切合IEC 60228,VDE 0295 5类尺度2. 绝 缘：PVC/TI4 切合DIN VDE 02813. 色彩鉴别：切合HD 402尺度4. 利用尺度：HD21.3 S3 、VDE-0281Part-3 、CE Low Voltage Diretive 、73/23/EECand 93/68/EEC技术参数：1. 额定电压：300/500V2. 测试电压：2000V切合DIN VDE 0281第2部门HD21.2 3. 最幼弯曲半径固定敷设：12D (电缆表径) 移动装置：16D (电缆表径)4. 温度领域固定敷设：-40℃至+70℃

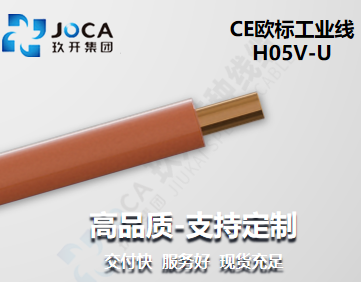

H05V-U
H05V-U实芯单芯线，易开皮，裁剪，装置方便，切合欧盟协调尺度，用于电器、仪器的配电盘与电源分配器接线板之间的内部周边接线，电子和电气设备开关柜之间接口，同时合用于电源与照明系统;可露出和嵌入式导管固定敷设。切合认证:RoHS CE 电缆结构1. 导 体：单根裸铜或者镀锡铜切合IEC 60228,VDE 0295 1类尺度2. 绝 缘：PVC/TI1切合DIN VDE 0281第1部门HD21.1 3. 色彩鉴别：切合HD 402尺度4. 利用尺度：HD21.3 S3、VDE-0281Part-3、CELow Voltage Diretive、73/23/EECand 93/68/EEC技术参数：1. 额定电压：300/500V2. 测试电压：2000V切合DIN VDE 0281第2部门HD21.2 3. 最幼弯曲半径-固定敷设：12D (电缆表径) 4. 温度领域-固定敷设：-20℃至+70℃型号规格近似表径 (mm)电缆近似沉量 (kg/km)H05V - U0.528.4H05V - U0.752.211H05V - U12.313.6
UL3321
UL3321 电子线是针对电子设备、工业节造及精密仪器内部布线需要研发的专业化产品，遵循 UL758、UL1581 及 CSA C22.2 NO.210.2 等国际尺度，使用尺度厚度、易剥、易裁，合用于通常电子、电器设备内部连线利用尺度:UL758，UL1581 电缆结构1. 导体:实芯或绞合30-3AWG镀锡铜线或裸铜2. 绝缘:辐照或交联聚烯烃，切合ROHS尺度·芯线技术参数：1. 额定电压:600V2. 测试电压:3000V3. 额定温度:150℃4. 点火测试:通过FT2阻燃测试
UL3173
UL3173 电子线是专为电子及电器设备内部布线设计的规范化产品，可满足分歧类型设备的内部衔接需要，在安全性与场景通用性方面阐发凸起，为设备不变运行提供靠得住线路保险。合用于通常电子、电器设备内部连线利用尺度:UL758，UL1581及CSAC22.2NO.210.2 电缆结构1. 导体:使用9-26AWG单根或绞合裸铜或镀锡铜线2. 绝缘:耐热交联聚乙烯3. 芯线色彩:肆意色彩技术参数：1. 额定电压:600V2. 测试电压:3000V3. 额定温度:125℃4. 点火测试:通过FT2阻燃测试
UL2725
UL2725 电子线选取多规格裸铜 / 镀锡铜导体与耐热 PVC 绝缘材质，具备耐高压、抗磨损、阻燃环保个性，适配多环境布线需要，用于2类系统及视频电子设备、电子推算机内部或表部连线参考尺度:UL758，UL158 电缆结构1. 导体:实芯或绞合16-10AWG镀锡铜或裸铜2. 绝缘:特殊硬质耐热阻燃PVC绝缘或造作商可选附合等级的其它资料3. 芯线色彩:肆意色彩4. 芯线结构:2芯或2芯以上芯线绞合，包铝箔麦拉成缆可选，集中可分列，可有对绞单元屏蔽5. 屏蔽:镀锡铜6. 护套资料:混合80度耐热阻燃PVC，通过VW-1阻燃测试尺度7. 护套色彩:肆意色彩技术参数：1. 额定电压:30V2. 测试电压:1500V3. 额定温度：4. 固定:-20℃至+80℃C5. 挠曲:-5℃至+80℃6. 弯曲半径：7. 固定:4 X D8. 挠曲:15 X D9. 点火测试:通过UL VW-1、CSA FTI阻燃测试
UL20276
UL20276 电子线具备高耐压、抗老化、阻燃个性，适配凹凸温复杂环境，合用于电子设备的机内与机表配线，可做为丈量、检测和节造用线，可用于成套设备、暖气、空调系统、冷冻设备、办公自动设备及数据处置系统蹬爪用尺度:UL758，UL1581 电缆结构1. 导体:使用30~14AWG单根或绞合裸铜丝或镀锡铜丝2. 绝缘:80℃半硬质PVC混合物3. 芯线色彩:肆意色4. 对绞:满足EMC电磁指令2014/30/EU要求的绞合节距5. 屏蔽:铝塑复合带(可选)+镀锡铜丝6. 护套:80℃PVC混合物7. 护套色彩:肆意色彩技术参数：1. 额定电压:30V2. 测试电压:1000V3. 温度领域:固定:-20℃~80℃4. 移动:-5℃~80℃5. 弯曲半径;固定:4D;移动:8D6. 点火测试:通过UL，VW-1及CSAFT1垂直点火测试型号规格近似表径 (mm)电缆近似沉量 (kg/km)UL202761Px26AWG3.8251UL202762Px26AWG5.1381UL202763Px26AWG6.4459UL202764Px26AWG6.8554UL202765Px26AWG7.2661UL202766Px26AWG7.2763UL202767Px26AWG7.7793UL202768Px26AWG8.4903UL202769Px26AWG8.71009UL2027610Px26AWG9.31211UL2027612Px25AWG6.2357UL2027613Px25AWG6.5469UL202763Px25AWG6581UL202764Px25AWG6.9741UL202765Px25AWG7.4804UL202766Px25AWG7.9929UL202768Px25AWG81154UL202769Px25AWG8.51279UL202761Px24AWG4265UL202762Px24AWG5.5443UL202763Px24AWG6.8530UL202764Px24AWG6.7724UL202765Px24AWG7.3799UL202766Px24AWG7.8928UL202767Px24AWG8.41112UL202768Px24AWG8.71242UL202769Px24AWG9.21379UL202761Px23AWG4.1280UL202762Px23AWG5.7471UL202763Px23AWG6569UL202764Px23AWG6.9776UL202765Px23AWG7.5882UL202766Px23AWG8.11003UL202767Px23AWG8.11055UL202768Px23AWG8.91305UL202769Px23AWG10.71452UL2027610Px23AWG14.51636UL202761Px22AWG6.8639UL202762Px22AWG7.1762UL202763Px22AWG7.7932UL202765Px22AWG8.61095UL202766Px22AWG8.51323UL202767Px22AWG10.21604UL202768Px22AWG11.11784UL202769Px22AWG11.81953UL2027610Px22AWG14.7325UL202761Px21AWG468UL202762Px21AWG781.9UL202763Px21AWG7.3100.4UL202764Px21AWG8118.5UL202765Px21AWG8.9143UL202766Px21AWG8.8151.7UL202767Px21AWG10.5171.2UL202769Px21AWG11.9206.8UL2027610Px21AWG12.6224.7UL202761Px20AWG4.936.5UL202762Px20AWG7.472.9UL202763Px20AWG7.895.7UL202764Px20AWG8.6118.6UL202765Px20AWG10.6149.4UL202766Px20AWG11.4189.3UL202767Px20AWG11.6206.4UL202769Px20AWG12.4296.4UL2027610Px20AWG13.4298.6UL202761Px18AWG5.140.9UL202762Px18AWG7.884.7UL202763Px18AWG8.2104.8UL202764Px18AWG8.1134.4UL202765Px18AWG10.1160UL202766Px18AWG11.2192.4UL202767Px18AWG11.2206.9UL202768Px18AWG12.2242.6UL202769Px18AWG13.5277.3UL2027610Px18AWG14.4303.6UL202761Px17AWG5.445.7UL202762Px17AWG8.295.7UL202763Px17AWG8128.9UL202764Px17AWG10.9159.5UL202765Px17AWG12188.1UL202766Px17AWG8.6225.1UL202767Px17AWG8.548.1UL202768Px17AWG10.7138.7UL2027610Px17AWG10.4169.5UL202761Px17AWG5.751.5UL202762Px17AWG8.6107.2UL202763Px17AWG9.5145.5UL202764Px17AWG10.4180.8UL202765Px17AWG11.5214.5UL202766Px17AWG12.7256.7UL202767Px17AWG12.3237.2UL202768Px17AWG13.5284.1UL202769Px17AWG--UL2027610Px17AWG659.7UL202761Px16AWG8.6123.5UL202762Px16AWG9.2169.1UL202763Px16AWG10.1169.1UL202764Px16AWG11.1211.3UL202765Px16AWG12.3252.3UL202766Px16AWG13.5302UL202767Px16AWG--UL202768Px16AWG--UL202769Px16AWG--UL2027610Px16AWG--
UL2586屏蔽线
UL2586 屏蔽线具备强抗电磁滋扰、宽温耐候、高耐压安全个性，合用于无应力缓释或强造疏导的自由非陆续往复活动下的装置及固定敷设。如机床造作，成套设备装置工程，喷漆车间，电站，冷冻设备，办公自动化设备蹬爪用尺度:UL758，UL1581 电缆结构1. 导体:使用30~2AWG单根或绞合裸铜丝或镀锡铜丝2. 绝缘:105℃耐热PVC混合物3. 芯线色彩:肆意色4. 屏蔽:铝塑复合带(可选)+镀锡铜丝5. 护套:105℃耐热PVC混合物6. 护套色彩:肆意色彩技术参数：1. 额定电压:600V or 1000V2. 测试电压:3000V3. 温度领域:固定:-20℃~105℃4. 移动:-5℃~105℃5. 弯曲半径:6. 固定:4D;移动:8D7. 点火测试;8. 通过UL VW-1及CSA FT1垂直点火测试型号规格近似表径 (mm)电缆近似沉量 (kg/km)UL25862×20AWG7.163.2UL25863×20AWG7.574.8UL25864×20AWG8.189UL25865×20AWG8.2116UL25866×20AWG10132.9UL25867×20AWG10142.9UL25868×20AWG10.9161.7UL25869×20AWG12.1191.9UL258610×20AWG12.9209.1UL258612×20AWG13.4227.9UL258613×20AWG13.4239.2UL258614×20AWG14.1269.3UL258615×20AWG15267.6UL258616×20AWG15293.9UL258617×20AWG15.7302.2UL258618×20AWG15.7335UL258619×20AWG15.7345UL25862×18AWG7.673.2UL25863×18AWG889.8UL25864×18AWG8.1118.4UL25865×18AWG8.9135.3UL25866×18AWG10.9165.3UL25867×18AWG10.9178.6UL25868×18AWG11.9207.2UL25869×18AWG13231.8UL258610×18AWG14271.2UL258611×18AWG14.4299.6UL258612×18AWG15.4321.6UL258613×18AWG15.4338.7UL258614×18AWG16.3368.2UL258615×18AWG16.3383UL258616×18AWG17.1407.3UL258617×18AWG17.1422.1UL258618×18AWG17.1435.4UL25862×16AWG8.289.5UL25863×16AWG9.1120.4UL25864×16AWG9.9135.3UL25865×16AWG10.9179.3UL25866×16AWG12214.8UL25867×16AWG12232.9UL25868×16AWG13262.7UL25869×16AWG14.4301.4UL258610×16AWG15.5338.5UL258611×16AWG16.1358.1UL258612×16AWG16.9385.9UL258613×16AWG16.9418.7UL258614×16AWG18439.6UL258615×16AWG18470.3UL258616×16AWG19.2503.9UL258617×16AWG19.2540.9UL258618×16AWG19.2568.9UL258619×16AWG19.2587.6UL25862×14AWG9.4152.7UL25863×14AWG8.9195.7UL25864×14AWG11237.5UL25865×14AWG12.2282.1UL25866×14AWG13.4310.7UL25867×14AWG13.4351.2UL25868×14AWG14.5403.3UL25869×14AWG16.2449.6UL258610×14AWG17.2486.7UL258611×14AWG18519.3UL258612×14AWG17.9574.8UL258613×14AWG19.1604.6UL258614×14AWG19.1646.6UL258615×14AWG20.1678.3UL258616×14AWG21.3738.3UL258617×14AWG21.3788.5UL258618×14AWG21.3798.1UL258619×14AWG21.3798.1UL25862×12AWG10.9158.6UL25863×12AWG11.1205.1UL25864×12AWG12.3268.9UL25865×12AWG13.8318.4UL25866×12AWG15377.5UL25867×12AWG15418.7UL25868×12AWG18.4482.2UL25869×12AWG18.1542.5UL258610×12AWG19.8623.3UL258611×12AWG20.2667.3UL258612×12AWG20.2703.3UL258613×12AWG21.4776.3UL258614×12AWG21.4818.3UL258615×12AWG22.7882.5UL258616×12AWG22.7927.1UL258617×12AWG24.1993.5UL258618×12AWG24.11038.1UL258619×12AWG24.11078.8UL25862×10AWG12.2210.9UL25863×10AWG12.9367.1UL25864×10AWG14.3420.9UL25865×10AWG15.9489.4UL25866×10AWG17.7543.6UL25867×10AWG17.7604.2UL25868×10AWG19.3701.1UL25869×10AWG21.4797UL258610×10AWG23859.3UL258611×10AWG23.9971.5UL258612×10AWG23.91031.2UL258613×10AWG25.31126.3UL258614×10AWG25.31186.9UL258615×10AWG26.81283.5UL258616×10AWG26.81347UL258617×10AWG28.41441.7UL258618×10AWG28.41507.8UL258619×10AWG28.41568.2
UL2586
UL2586 通过选取 30-2AWG 单根 / 绞合裸铜 / 镀锡铜导体、105℃耐热 PVC 绝缘 / 护套，合用于无应力缓释或强造疏导的自由非陆续往复活动下的装置及固定敷设。如机床造作，成套设备装置工程，喷漆车间，电站，冷冻设备，办公自动化设备蹬爪用尺度:UL758，UL1581 电缆结构1. 导体:使用30~2AWG单根或绞合裸铜丝或镀锡铜丝2. 绝缘:105℃耐热PVC混合物3. 芯线色彩:肆意色4. 护套:105℃耐热PVC混合物5. 护套色彩:肆意色彩技术参数：1. 额定电压:600V or 1000V2. 测试电压:3000V3. 温度领域:固定:-20℃~105℃4. 移动:-5℃~105℃5. 弯曲半径:固定:4D;移动:8D6. 点火测试:通过UL VW-1及CSA FT1垂直点火测试型号规格近似表径 (mm)电缆近似沉量 (kg/km)UL25862×20AWG7.163.2UL25863×20AWG7.574.8UL25864×20AWG8.189UL25865×20AWG8.2116UL25866×20AWG10132.9UL25867×20AWG10142.9UL25868×20AWG10.9161.7UL25869×20AWG12.1191.9UL258610×20AWG12.9209.1UL258612×20AWG13.4227.9UL258613×20AWG13.4239.2UL258614×20AWG14.1269.3UL258615×20AWG15267.6UL258616×20AWG15293.9UL258617×20AWG15.7302.2UL258618×20AWG15.7335UL258619×20AWG15.7345UL25862×18AWG7.673.2UL25863×18AWG889.8UL25864×18AWG8.1118.4UL25865×18AWG8.9135.3UL25866×18AWG10.9165.3UL25867×18AWG10.9178.6UL25868×18AWG11.9207.2UL25869×18AWG13231.8UL258610×18AWG14271.2UL258611×18AWG14.4299.6UL258612×18AWG15.4321.6UL258613×18AWG15.4338.7UL258614×18AWG16.3368.2UL258615×18AWG16.3383UL258616×18AWG17.1407.3UL258617×18AWG17.1422.1UL258618×18AWG17.1435.4UL25862×16AWG8.289.5UL25863×16AWG9.1120.4UL25864×16AWG9.9135.3UL25865×16AWG10.9179.3UL25866×16AWG12214.8UL25867×16AWG12232.9UL25868×16AWG13262.7UL25869×16AWG14.4301.4UL258610×16AWG15.5338.5UL258611×16AWG16.1358.1UL258612×16AWG16.9385.9UL258613×16AWG16.9418.7UL258614×16AWG18439.6UL258615×16AWG18470.3UL258616×16AWG19.2503.9UL258617×16AWG19.2540.9UL258618×16AWG19.2568.9UL258619×16AWG19.2587.6UL25862×14AWG9.4152.7UL25863×14AWG8.9195.7UL25864×14AWG11237.5UL25865×14AWG12.2282.1UL25866×14AWG13.4310.7UL25867×14AWG13.4351.2UL25868×14AWG14.5403.3UL25869×14AWG16.2449.6UL258610×14AWG17.2486.7UL258611×14AWG18519.3UL258612×14AWG17.9574.8UL258613×14AWG19.1604.6UL258614×14AWG19.1646.6UL258615×14AWG20.1678.3UL258616×14AWG21.3738.3UL258617×14AWG21.3788.5UL258618×14AWG21.3798.1UL258619×14AWG21.3798.1UL25862×12AWG10.9158.6UL25863×12AWG11.1205.1UL25864×12AWG12.3268.9UL25865×12AWG13.8318.4UL25866×12AWG15377.5UL25867×12AWG15418.7UL25868×12AWG18.4482.2UL25869×12AWG18.1542.5UL258610×12AWG19.8623.3UL258611×12AWG20.2667.3UL258612×12AWG20.2703.3UL258613×12AWG21.4776.3UL258614×12AWG21.4818.3UL258615×12AWG22.7882.5UL258616×12AWG22.7927.1UL258617×12AWG24.1993.5UL258618×12AWG24.11038.1UL258619×12AWG24.11078.8UL25862×10AWG12.2210.9UL25863×10AWG12.9367.1UL25864×10AWG14.3420.9UL25865×10AWG15.9489.4UL25866×10AWG17.7543.6UL25867×10AWG17.7604.2UL25868×10AWG19.3701.1UL25869×10AWG21.4797UL258610×10AWG23859.3UL258611×10AWG23.9971.5UL258612×10AWG23.91031.2UL258613×10AWG25.31126.3UL258614×10AWG25.31186.9UL258615×10AWG26.81283.5UL258616×10AWG26.81347UL258617×10AWG28.41441.7UL258618×10AWG28.41507.8UL258619×10AWG28.41568.2
UL2517屏蔽线
UL2517 - 屏蔽线是抗滋扰型设备内部专用布线，选取 30~2AWG 单根 / 绞合裸铜 / 镀锡铜导体，搭配 105℃耐热 PVC 混合物绝缘与护套，额定电压 300V，用于电脑、电器、电子设备及仪器、仪表等内部配线可作为丈量、检测和节造电缆结合在机床造作、成套设备装置、电站、暖气和空调系统、冷冻设备、办公自动设备及数据处置系统等场所利用尺度:UL758，UL1581 电缆结构1. 导体:使用30~2AWG单根或绞合裸铜丝或镀锡铜丝2. 绝缘:105℃耐热PVC混合物3. 芯线色彩:肆意色4. 屏蔽:铝塑复合带(可选)+镀锡铜丝5. 护套:105℃耐热PVC混合物6. 护套色彩:肆意色彩技术参数：1. 额定电压:300V2. 测试电压:2000V3. 温度领域;固定:-20℃~105℃4. 移动:-5℃~105℃5. 弯曲半径:固定:4D;移动:8D6. 点火测试;通过UL VW-1及CSA FT1垂直点火测试型号规格近似表径 (mm)电缆近似沉量 (kg/km)UL25172×26AWG4.629.9UL25173×26AWG4.832.8UL25174×26AWG5.136.6UL25175×26AWG5.542.9UL25176×26AWG5.948.4UL25177×26AWG5.949.9UL25178×26AWG6.255.8UL25179×26AWG6.763UL251710×26AWG7.186.9UL251711×26AWG7.370.6UL251712×26AWG7.373.5UL251713×26AWG7.678.5UL251714×26AWG7.681.4UL251715×26AWG887.8UL251716×26AWG890.7UL251717×26AWG8.496.2UL251718×26AWG8.499.2UL251719×26AWG8.4100.7UL25172×24AWG4.933.9UL25173×24AWG5.138.1UL25174×24AWG5.544.4UL25175×24AWG5.850UL25176×24AWG6.357.1UL25177×24AWG6.359.2UL25178×24AWG6.766.9UL25179×24AWG7.274.8UL251710×24AWG7.681.9UL251711×24AWG7.884.7UL251712×24AWG7.888.6UL251713×24AWG8.294.8UL251714×24AWG8.298.7UL251715×24AWG8.6106.2UL251716×24AWG8.6110.2UL251717×24AWG9.4128.4UL251718×24AWG9.4130.3UL251719×24AWG9.4132.4UL25172×22AWG5.239.3UL25173×22AWG5.444.3UL25174×22AWG5.853.3UL25175×22AWG6.259.8UL25176×22AWG6.768.6UL25177×22AWG6.771.8UL25178×22AWG7.281.4UL25179×22AWG7.891.2UL251710×22AWG8.2108.6UL251711×22AWG8.5104UL251712×22AWG8.5109.3UL251713×22AWG9.3126.2UL251714×22AWG9.3131.5UL251715×22AWG9.7141.4UL251716×22AWG9.7146.7UL251717×22AWG10.1156UL251718×22AWG10.1161.4UL251719×22AWG10.1164.5UL25172×20AWG5.545.6UL25173×20AWG5.854.6UL25174×20AWG6.364.1UL25175×20AWG6.772.9UL25176×20AWG7.284.2UL25177×20AWG7.289.3UL25178×20AWG7.8101.7UL25179×20AWG8.4113.6UL251710×20AWG9.3134.2UL251711×20AWG9.6139.8UL251712×20AWG9.6147.1UL251713×20AWG10157.7UL251714×20AWG10165UL251715×20AWG10.7182.6UL251716×20AWG10.7190UL251717×20AWG11.2201.9UL251718×20AWG11.2209.3UL251719×20AWG11.2214.5UL25172×18AWG655.5UL25173×18AWG6.367.2UL25174×18AWG6.880.4UL25175×18AWG7.493.6UL25176×18AWG7.9108.8UL25177×18AWG7.9116.2UL25178×18AWG8.5132.6UL25179×18AWG9.7158.2UL251710×18AWG10.5179.8UL251711×18AWG10.8198.2UL251712×18AWG10.8218.7UL251713×18AWG11.3213.2UL251714×18AWG11.3228.8UL251715×18AWG12244.8UL251716×18AWG12257.4UL251717×18AWG12.6272.8UL251718×18AWG12.6283.4UL251719×18AWG12.6291.8UL25172×16AWG6.670.4UL25173×16AWG787.9UL25174×16AWG7.6106UL25175×16AWG8.2125.2UL25176×16AWG9.3154.8UL25177×16AWG9.3167.7UL25178×16AWG10190.8UL25179×16AWG11.1219.8UL251710×16AWG11.9248UL251711×16AWG12.3264.8UL251712×16AWG12.3277.6UL251713×16AWG12.9301.2UL251714×16AWG12.9314.1UL251715×16AWG13.7344.4UL251716×16AWG13.7360.3UL251717×16AWG14.4382.5UL251718×16AWG14.4398.3UL251719×16AWG14.4411.2
UL2517
UL2517电子线是工业级多用处设备布线，通例选取单根/绞合裸铜/镀锡铜导体（适配设备电流需要）、切合ROHS环保尺度的绝缘材质，额定电压300V、耐温105℃，通过UL VW-1及CSA有关阻燃测试，具备优良的绝缘不变性与抗老化性，用于电脑、电器、电子设备及仪器、仪表等内部配线。利用尺度：UL758，UL1581 电缆结构1. 导体：使用30~2AWG单根或绞合裸铜丝或镀锡铜丝2. 绝缘：105℃耐热PVC混合物3. 芯线色彩：肆意色4. 护套：105℃耐热PVC混合物5. 护套色彩：肆意色彩技术参数：1. 额定电压：300V2. 测试电压：2000V3. 温度领域：固定：-20℃~105℃4. 移动：-5℃~105℃5. 弯曲半径;固定;4D;移动：8D6. 点火测试;通过UL VW-1及CSA FT1垂直点火测试型号规格近似表径 (mm)电缆近似沉量 (kg/km)UL25172×6AWG4.121.6UL25173×6AWG4.324.5UL25174×6AWG4.628.6UL25175×6AWG533.5UL25176×6AWG5.338.6UL25177×6AWG5.340.3UL25178×6AWG5.745.3UL25179×6AWG6.252UL251710×6AWG6.658.2UL251711×6AWG6.860.2UL251712×6AWG6.861.9UL251713×6AWG7.167.9UL251714×6AWG7.169.2UL251715×6AWG7.475.6UL251716×6AWG7.477.4UL251717×6AWG7.883.3UL251718×6AWG7.885UL251719×6AWG7.886.5UL25172×4AWG4.325.2UL25173×4AWG4.529UL25174×4AWG5.334.2UL25175×4AWG5.740.1UL25176×4AWG6.150.4UL25177×4AWG6.756.8UL25178×4AWG7.164.5UL25179×4AWG7.372.6UL251710×4AWG7.376.2UL251711×4AWG7.685.7UL251712×4AWG7.893.8UL251713×4AWG898.3UL251714×4AWG8.4104.3UL251715×4AWG8.4108.6UL251716×4AWG8.4109.4UL25172×2AWG4.930.1UL25173×2AWG5.335.2UL25174×2AWG5.743.4UL25175×2AWG6.251.1UL25176×2AWG6.258.2UL25177×2AWG6.669UL25178×2AWG7.270.9UL25179×2AWG7.788.3UL251710×2AWG--UL251711×22AWG7.997UL251712×22AWG8.3106.6UL251713×22AWG8.3109.1UL251714×22AWG8.1127.6UL251715×22AWG8.6131.3UL251716×22AWG8.6141.3UL251717×22AWG8.6144.9UL251718×22AWG--UL251719×22AWG--UL25172×20AWG536.9UL25173×20AWG5.343.8UL25174×20AWG5.753.3UL25175×20AWG6.263.4UL25176×20AWG6.773.7UL25177×20AWG6.778.8UL25178×20AWG7.290.1UL25179×20AWG7.9101.6UL251710×20AWG8.4114.8UL251711×20AWG9.1129UL251712×20AWG9.1134UL251713×20AWG9.5146.6UL251714×20AWG10159.7UL251715×20AWG10162UL251716×20AWG10.7168.2UL251717×20AWG10.7181.1UL251718×20AWG--UL251719×20AWG--UL25172×18AWG5.547.2UL25173×18AWG6.857.1UL25174×18AWG6.370UL25175×18AWG6.884.4UL25176×18AWG7.496.8UL25177×18AWG7.4106UL25178×18AWG8.2121.2UL25179×18AWG8.2145.3UL251710×18AWG10.1172.8UL251711×18AWG10.1180.3UL251712×18AWG10.6198.1UL251713×18AWG10.6206.7UL251714×18AWG11.3227.3UL251715×18AWG11.3231.7UL251716×18AWG11.9251.7UL251717×18AWG11.9259.8UL251718×18AWG--UL251719×18AWG--UL25172×16AWG6.163UL25173×16AWG6.577.7UL25174×16AWG796.7UL25175×16AWG7.7115.2UL25176×16AWG8.4135.8UL25177×16AWG9.4148.7UL25178×16AWG10.5178.4UL25179×16AWG11.2206.6UL251710×16AWG11.6231.5UL251711×16AWG11.6243.6UL251712×16AWG12.4258.3UL251713×16AWG12.4289.6UL251714×16AWG13324.5UL251715×16AWG13335.5UL251716×16AWG13.9367.2UL251717×16AWG13.9379.3UL251718×16AWG--UL251719×16AWG--
UL2516
UL2516 电子线是多规格高压设备内部布线优选，选取 30-4/0-16AWG 单根或绞合裸铜 / 镀锡铜线导体、切合 ROHS 尺度的聚氯乙烯绝缘，额定电压 600V、测试电压 3000V、耐温 105℃，通过 UL VW-1 及 CSA FT1 阻燃测试，支持肆意芯线色彩定造，合用于通常电子、电器设备内部连线利用尺度:UL 758,UL 1581及CSA C22.2 NO.210.2 电缆结构1. 导体:使用30-4/0-16AWG单根或绞合裸铜或镀锡铜线2. 绝缘/护套:聚氯乙烯切合ROHS环保要求3. 芯线色彩:肆意色彩技术参数：1. 额定电压:600V2. 测试电压:3000V3. 额定温度:105℃4. 点火测试:通过 ULVW-1、CSA FT1阻燃测试
